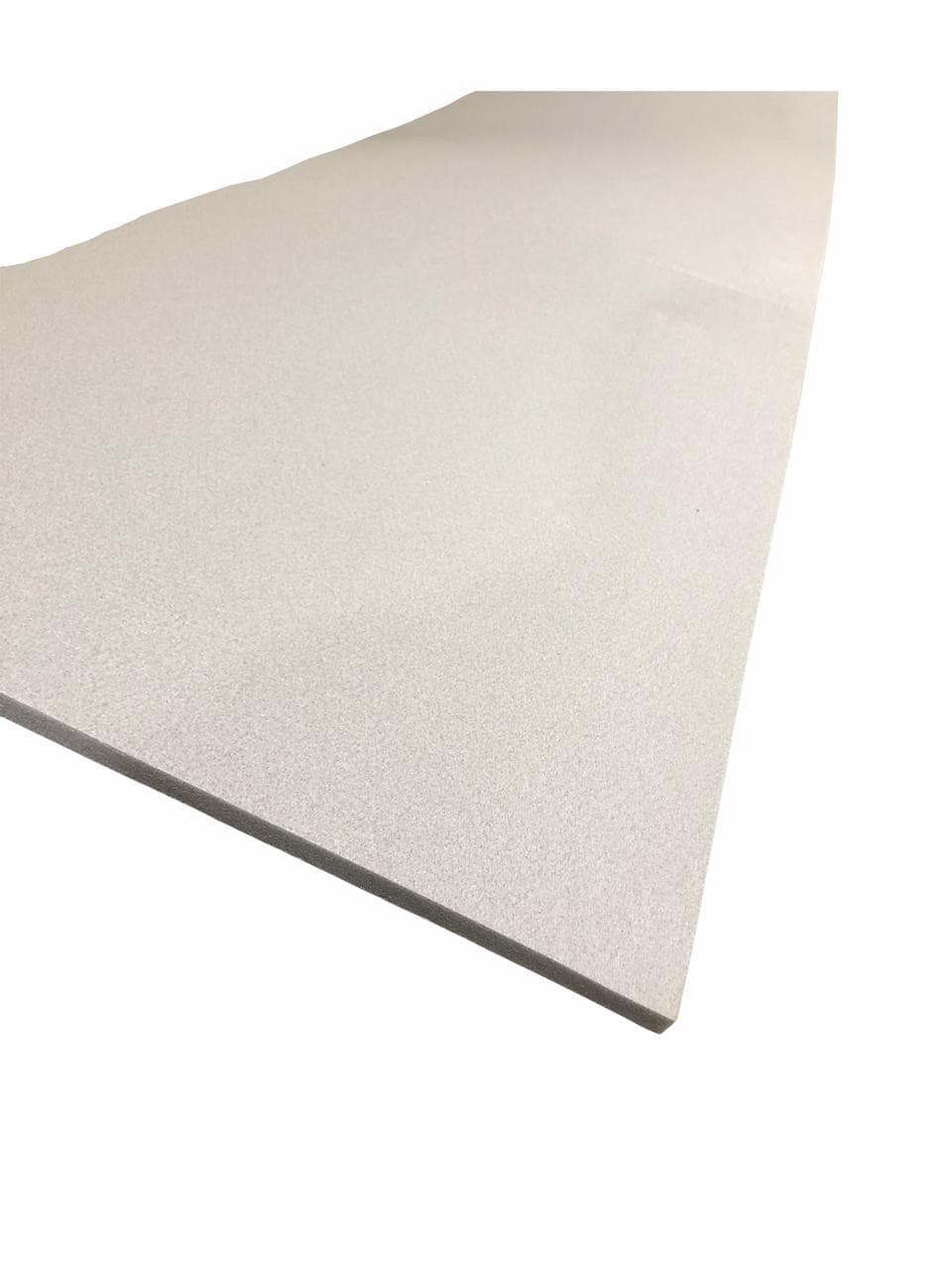

Ceramar Expansion Joint 4 foot x 10 foot Sheets
Cermar flexible foam expansion joint filler provides an excellent joint filler and back-up material for use in either horizontal or vertical applications where expansion and contraction movements must be accommodated. Cermar is compatible with all currently popular coldapplied sealants, caulks, and hot-pour joint sealing compounds. It is lightweight and easy to cut or form in the field without waste. Cermar compresses easily for use with shrinkage-compensating concrete and it may be used to relieve stress and pressure in concrete pavements. Specifications
ASTM D 5249, Type 2 ASTM D 1752, Sections 5.1 - 5.4, with compression requirement modified to 10 psi (7.03 g/mm2) minimum and 25 psi (17.58 g/mm2) maximum. ASTM D 7174-05
Technical Data
Compression, 50% 13 psi (9 g/mm²) 89.6 kPa
Extrusion 0.1 inch (2.5 mm)
Recovery 99.21%
Water absorption, volume% .246
