Belrad - Model 22 - Universal radiator - Compact and ventilated - 6 ports - 900 x 1200 mm

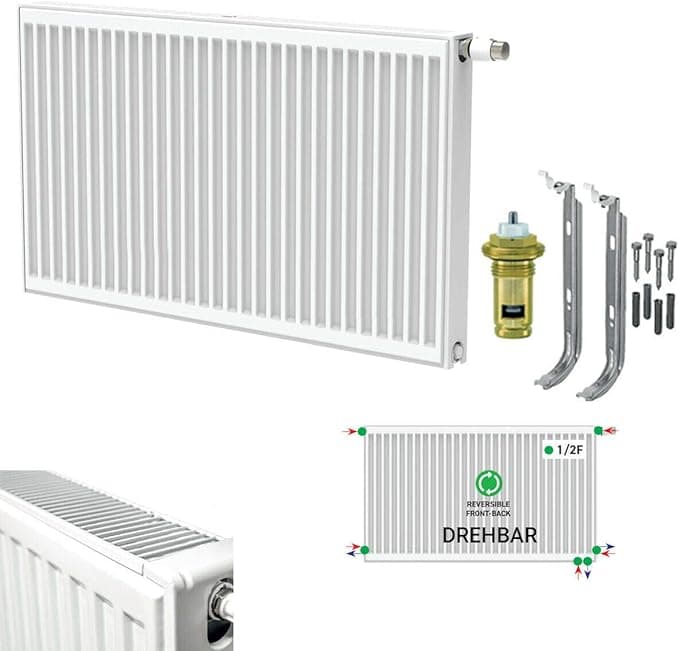

Universal radiator type 22-900 x 1200 mm according to DIN EN 442. Features: 6 connectors (left, right and bottom). Can be used as a valve or compact radiator. These high-quality universal radiators can be used as compact radiators or as valve radiators. Radiators are equipped with 6 connectors, left, right and bottom. For connection as a valve radiator, the thermostatic valve insert screws directly to the right or left into the radiator, pipe fittings are produced from below, either directly from the floor or wall. When selecting the radiator, it is possible to calculate in an intermediate manner, 100 W/m² at 75 °/65 ° C forward/rear temperature and 20 ° C ambient temperature. Technical specifications : Box contents: universal radiator type 22 – 900 x 1200 mm with 6 connection possibilities and 2 inch internal thread, 2 shutter caps, 1 bleed cap, wall mount/wall mount, Heimeier valve insert: right or left, because rotary radiator can be used as compact radiator or colour valve RAL900 10 (white pure), thermal power according to EN 442 at 75/65/20°C 2874.
