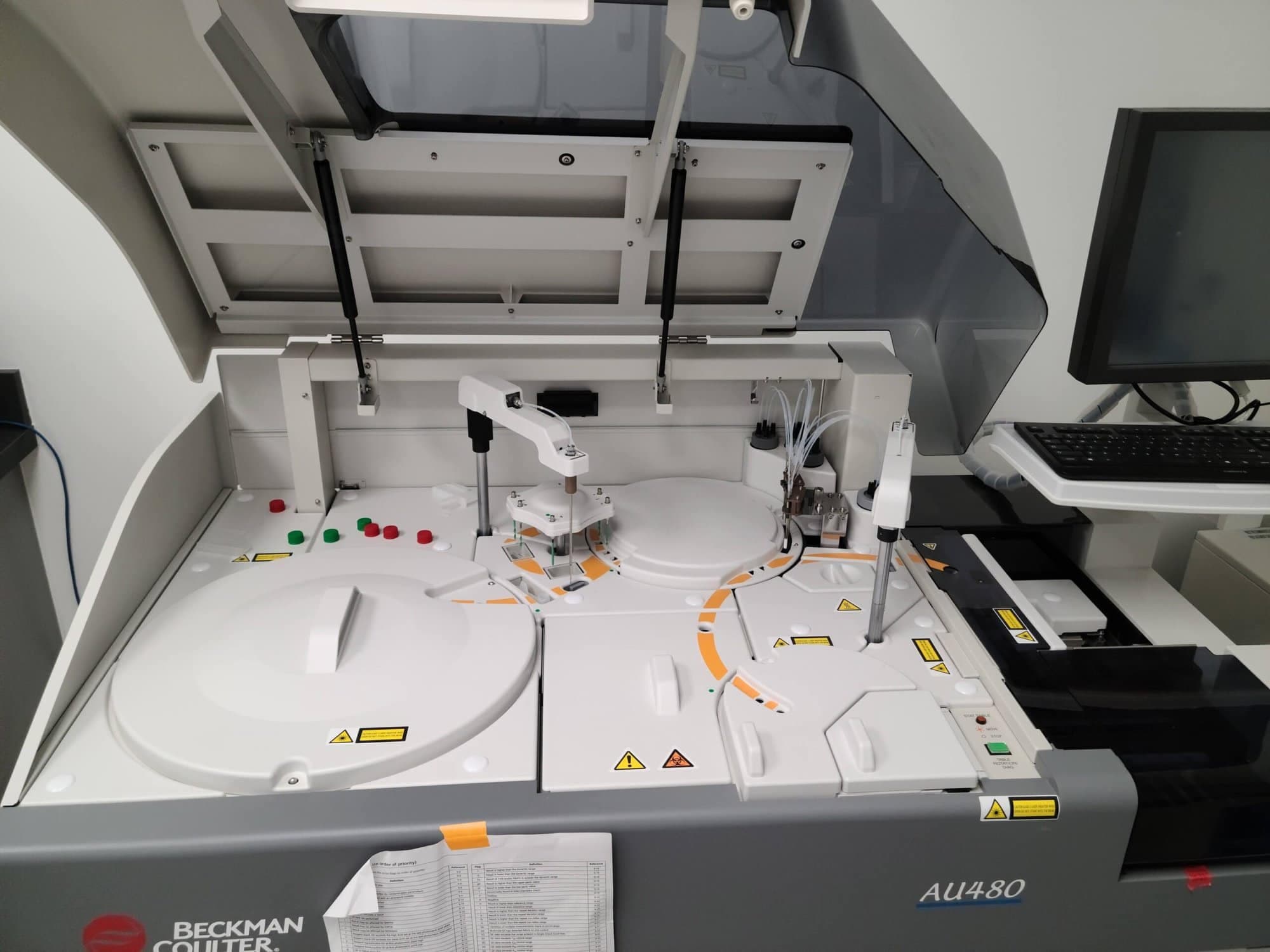

Beckman AU480 Chemistry Analyzer, 2016

Analytical System: Fully Automated, Random Access Chemistry System With STAT Capability. Analytical Principle: Spectrophotometry and Potentiometry Analytical Types: Endpoint, Rate, Fixed Point and Indirect ISE Analytical Methods: Colorimetry, Turbidimetry, Latex Agglutination, Homogeneous Eia, Indirect ISE Simultaneously Processed Analytes: 60 Photometric Tests + 3 Ise, 120 Pre-Programmed Onboard Tests Throughput: 400 Photometric Tests/Hour; Maximum of 800 With ISE ISE Throughput: 200 samples/hr. Maximum tests/hr; 600 if ISE only Sample Types: Serum, Plasma, Urine, Other Sample Feeder: Racks with 10 Samples Each (Barcodes on Primary Tubes and On Racks); Capacity of 80 Samples; Continuous Loading Sample Tubes: Primary and Secondary Tubes; Diameter From 11.5 to 16 mm; Height From 55 to 102 mmm, Nestled Micro Sample Cups STAT Samples: Up to 22 Positions for STAT Samples via Cooled Turntable. Easy-To-Operate Interrupts Between Tests. Auto-Repeat Run Capability. Sample Volume: 1–25 μl in 0.1 μl steps (1-25 μl for repeats) Reagent Capacity: 76 Positions for (R1+R2, Detergent Position). Holds 15, 30 and 60ml bottles. Reagent Storage: Refrigerated (4–12°C) Reagent Volume: R1: 10–250 μl; R2: 10–250 μl (in 1 μl increment) Total Reaction Volume: 90-350 μl Reaction Cuvette: Permanent Glass Cuvettes Reaction Time: Up to 8 minutes, 37.5 seconds Reaction Incubation: 37°C, dry bath Photometry System: Direct Assay Through the Reaction Cuvette (0–3.0 OD) Mono and Bichromatic Measurements Possible Wavelength: 13 Different Wavelengths Between 340-800 nm Calibration: Auto Calibration, Cooled Calibrator Positions; Master Calibration Established by Two-Dimensional Barcode Quality Control: Auto QCD, cooled QC positions Rerun: 1. Auto Rerun and Manual Rerun Available 2. Automatic Sample Increase, Decrease or Normal Repeat 3. Reflex Testing Sample Pre-dilution: Dilution Ratio: Fixed to 3, 5, 10, 15, 20, 25, 50, 76 or 100 Test Requisition: Individual and Profile Test Requisition via Online, Mouse, Function Keys and Touch-Screen Sample Integrity: Lipaemia, Haemolysis and Icterus Analysis. Sample Clot Detection and Probe Crash Protection. Online: RS232C. Full Uni- and Bidirectional Communication Possible. Software: Windows 7® Data Storage: Sample Number 100,000 samples. Reaction Data 200,000 tests Dimensions (W x H x D): ANL; 1,450 x 1,205 x 760 Weight: 960 lbs Power Supply: 100-240v; 60 Hz/ <3.5kVA Water system included.
